- Bad pin display
- Plastic body bad display
- Notch reverse bad display
- Bad character display

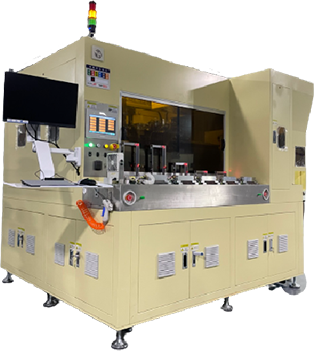

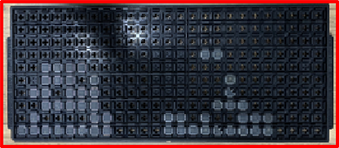

LQFP Series Appearance Inspection Equipment
Equipment size: 2400mm (length) * 2000mm (width) * 2100mm (height)
Testing content.
2D.
Bad seal class: broken letters, reprint, missing
Foot class defects: foot width, foot length, foot spacing, foot displacement, burr, span, crooked foot, copper leakage, dirty
Plastic seal body type defect: direction identification, scratch, trachoma, dirty, defective, size, overflow material, crack
3D: coplanarity, station height
UPH: >65000

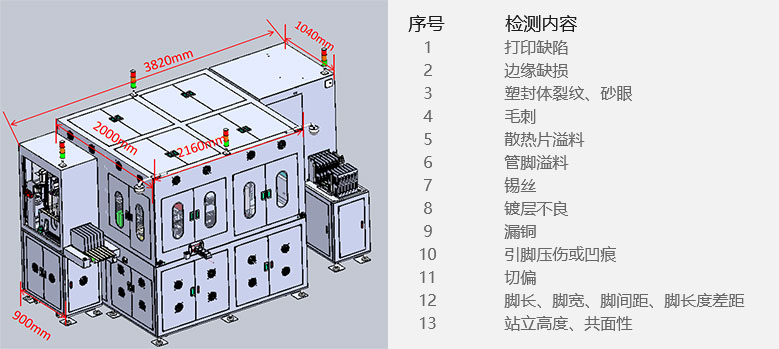

TO220 Series Appearance Inspection Equipment
Heat sink: glue overflow, copper leakage, plating, tin flakes.
Pin: glue overflow, cut, copper leakage, pressure injury, burr, common surface.
Plastic seal body: bad bright spot, bad sand eye, bad beating.
Stamp: offset printing, different printing.
Material tube: pin direction, pin shape, length of material tube, material tube printing characters.
UPH：＞650 tubes

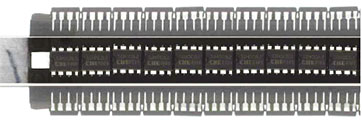

DIP series appearance inspection equipment
Dimensional defects: pin length and spacing, span, pin bending inclination, etc.
Bad appearance: surface character, surface damage cracks, pin damage copper leakage, etc.
UPH: >100 tubes
Pin size defect detection diagram
| Code | Bad Name | Actual bad diagram |
|---|---|---|
| a | Pin spacing | Characterization：Through the structured light and the lens with optical prism, the perfect imaging of the front and two sides of the chip is achieved. In turn, the key dimensions are acquired one by one through a stable algorithm. The detection of each dimension of the chip is realized. |
| b | Top surface of the device to the middle of the coarse pin size | |
| c | Fine stitch length | |
| d | Pin span distance | |
| e | Pin tilt angle | |
| f | Coarse stitch width | |
| g | Fine stitch width | |
| h | Component thickness |
| Test Type | Each detection of bad items | |
|---|---|---|
| Detection of geometric dimensions | Print position, print angle, print margin, character offset |
|
| Inspection of print quality | Contrast, underprint, overprint, overall size |
Appearance defect detection - Printing defect
Pre-process forked products, often with internal hollow cores, etc.
Defects generated during the injection molding process have trustworthiness potential.
The edge of the chip-plastic body is bumped and there is a quality hazard.
The chip is processed and manufactured with hard damage.

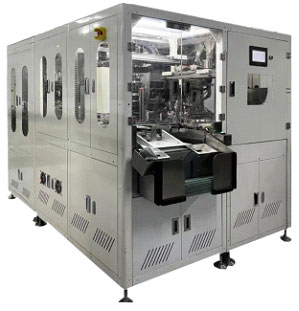

DIP series appearance inspection equipment
Bad appearance of plastic seal: scratch, crack, stain, defect, burn, air hole of plastic seal
Bad printing: tilt, shift, deformation, blur, broken word, wrong direction and content, unprinted, reprint
UPH＞10 strips/min
