Equipment size：L.1750㎜ W.1400㎜ H.2100㎜

Testing product：Keyboard keycap

Equipment beat: UPH 240 (CT:14s)

Equipment mode: single machine manual loading and unloading

Key index: Missing detection: 0.5%; Overkill: 10%

Detection of defects.

Bad appearance of keycap front

Particles, lint, dirt, poor edge (serrated), white spots, bubbles, paint removal, scratches and scrapes, bruises and indentations, pits, bad laser engraving, cracks, shadows of marks

Equipment size：L.1760㎜ W.1360㎜ H.2100㎜

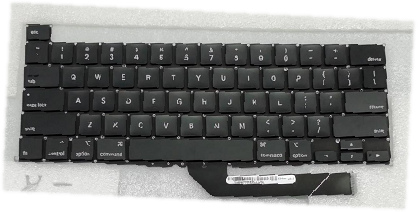

Inspection product：Keyboard module

Equipment tempo: 15s/2Pcs, two pieces per inspection

Equipment mode: single machine manual loading and unloading

Key index: Missing detection: 0.5%; Overkill: 10%

Detecting defects.

Front light leakage bad

Side light leakage defect

Character defects

Equipment size：L. 2350㎜ W. 1400㎜ H. 1850㎜

Test product：Charger plug

Equipment tempo: 2s/pcs

Equipment method: The front section conveying brings material (width 400MM) to distinguish OK and NG products, and automatically feeds them.

Key index: not more than 1% of overkill after manual re-judgment

Detecting defects.

Black spots, foreign colors, bright marks, scratches, dirt, indentations, USB
